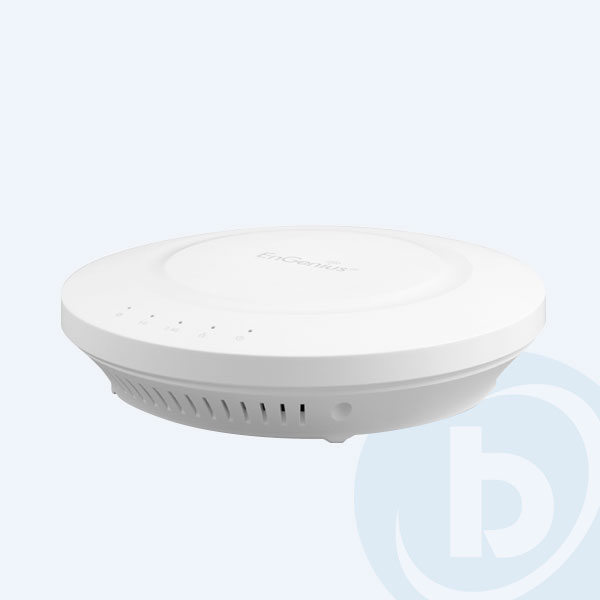

Access Point EnGenius EAP1200H, 300 Mbps, PoE, 4 Antenas 1 año de garantía

Technical Specifications

Standard
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.3at

Antenna
(4) Integrated 3D Sectorized Antenna Array
(2) Internal 5 dBi on 2.4 GHz
(2) Internal 5 dBi on 5 GHz

Physical Interface
1 x 10.100/1000 Gigabit Ethernet Port with PoE support
1 x Reset Button
1 x Power Connector

Physical Security
1 x Kensington Security Slot

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x WPS

LED Control
On/Off

Power Source
Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz
DC Input: 12VDC/2A
PoE: Compatible with 802.3at

Memory Capacity
16 MB Flash
128 MB SDRAM

Wireless & Radio Specifications
Dual Band, Dual Concurrent Radio

Operation Modes
Access Point
WDS Bridge
WDS Access Point

Transmit Power (combined)
2.4 GHz up to 26 dBm
5 GHz up to 26 dBm

Radio Chains/Spatial Streams
2 x 2: 2

Supported Data Rates (Mbps)
2.4 GHz: Max 300
5 GHz: Max 866
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 866 (MCS0 to MCS9, NSS=1 to 2)

Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

Channelization
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width

Supported Modulation
802.11b: BPSK, QPSK, 16-QAM, 64-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ac: BPSK, QPSK, 16-QAM, 256-QAM

Management
Auto Channel Selection
Multiple SSID: 16 SSIDs, 8 SSIDs per Radio
SNMP V1/V2c/V3
MIB I/II, Private MIB
VLAN Tag/VLAN Pass-through
Wireless Clients List
Guest Network
Fast Roaming
Fast Handover
Client Limit
RADIUS Accounting
Mobility: PMKSA for Fast Roaming
Firmware Upgrade: Web UI/CLI
Backup/Restore
Save Configuration as Default
Auto Reboot
Email Alert



Control
EnGenius EZ Controller
CLI Supported (Telnet/SSH)
Multicast Supported
Band Steering

Security
WEP Encryption: 64/128/152-bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID Broadcast Enable/Disable
Hidden BSSID
Client Isolation
L2 Isolation
MAC Address Filtering, Up to 64 Fields
Wireless STA (Client) Connection List
Https Support
SSH Support

QoS (Quality of Service)
Supports 802.11e/WMM/Traffic Shaping Standards
(WMM - Wireless Multimedia)

Environmental & Physical

Temperature Range
Operating: 32 °F to 122 °F (0°C to 50 °C)
Storage: -4 °F to 140°F (-20 °C to 60 °C)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Dimensions & Weights
EAP1200H Device
Weight: 0.62 lbs. (28.12 g)
Diameter: 6.36” (161.54 mm)
Height: 1.64” (41.66 mm)

Packaging
Weight: 1.42 lbs. (644.10 g)
Length: 12” (304.80 mm)
Width: 9” (228.60 mm)
Height: 3” (76.2 mm)

Master Carton
Weight: 24 lbs. (10.89 kg)
Length: 19” (482.60 mm)
Width: 15.25” (387.35 mm)
Height: 13” (330.20 mm)
No. of boxes per master carton: 10 units

Package Contents
EAP1200H Dual Band AC1200 Ceiling Mount Indoor Access Point
Power Adapter (12V/2A)
T-Rail Mounting Kit
Ceiling and Wall Mount Screw Kits
Mounting Brackets
Installation Template
RJ-45 Ethernet Cables
Quick Installation Guide

Certifications
FCC, CE, IC

Warranty
1 Year
