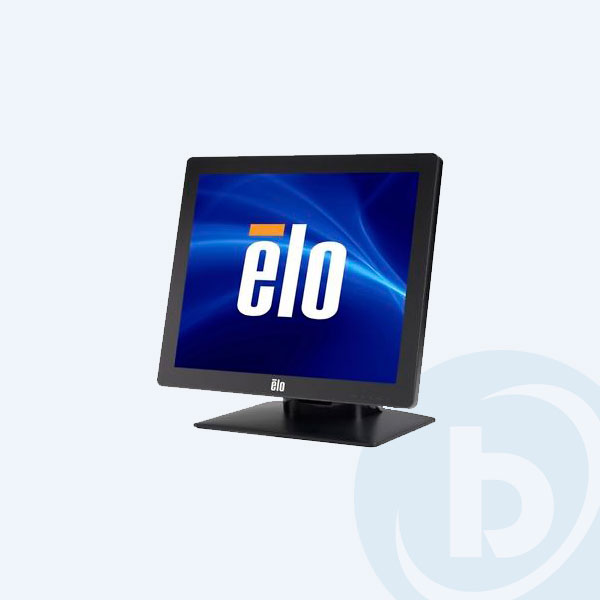

Monitor LCD Elo Touch 1717l, 17'', Touch Screen, Serial/USB, Resistente Agua/Polvo/Grasa 1 año de garantía
Número de Parte: E017030
11,824
IVA incluido en el precio del producto
Tiempo de entrega: de 1 a 5 días hábiles
Precios y disponibilidad sujeta a cambios sin previo aviso
Precios y disponibilidad sujeta a cambios sin previo aviso
Features
- Sleek and thin design with “Built for Touch” Reliability.
- Flexible and space-saving.
- 40% Energy savings using LED technology.
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 17” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 13.3 x 10.6 inches/338 x 270 mm.
- 5:4 aspect ratio.
- 1280 x 1024 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 20W, internal and external power options.
- Warranty: 3 years standard.
Specifications
| Model | 1717L |
|---|---|
| Color | Black or White |
| LCD Technology | Active matrix TFT LCD with LED backlighting |
| Diagonal size | 17.0" |
| Monitor thickness | 1.7 inches/43 mm panel depth |
| Aspect Ratio | 5:4 |
| Active Display Area | 13.3 x 10.6 inches/338 x 270 mm |
| Native Resolution | 1280 x 1024 |
| Preset Video Timings |
640x480 @ 60Hz, 75Hz |
| Colors | 16.7 million |
| Brightness (Typical) |
LCD panel: 250 nits |
| Response Time (Tr+tf) (Typical) |
5 msec |
| Viewing Angle (Typical) |
Horizontal: ±85° or 170° total Vertical: ±80° or 160° total |
| Contrast Ratio (Typical) | 800:1 |
| On-Screen Display (OSD) |
Accessible through switches along the bottom: |
| Video | • Analog VGA on Female DE-15 connector • Input Video Horizontal Sync frequency range: 31.5- 80KHz • Input Video Vertical Sync (frame rate) frequency range: 56-75Hz |
| Touch Interface | Serial (RS232) and USB |
| Monitor input power connector – AC | IEC 60320 C6 |
|---|---|
| Monitor input power signal specifications | 100-240VAC, 50/60Hz |
| Monitor input power connector - DC | Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) |
| Monitor input power signal specifications | 12VDC ±5% |
| Note | Optional AC-DC power adapter sold for this monitor |
| Adapter input connector | IEC 60320 C14 |
| Adapter input voltage range | 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | • ON (monitor only): 20W • SLEEP (monitor only) : 1.8W • OFF (monitor only) : 1.4W |
| Shipping Dimensions | 20.1 x 9.2 x 20 inches/511 x 233 x 510 mm |
|---|---|
| Dimensions (with stand) |
15.4 x 7.5 x 14.2 inches/392 x 215 x 361 mm |
| Weight | • Unpackaged: 11.9 lb/ 5.4 kg • Packaged: 18.3lb/ 8.3 kg |
|---|
| Temperature | Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 140°F (20°C to 60°C) |
|---|---|
| Humidity (noncondensing) |
Operating: 20%-80% Storage: 10%-90% |
| MTBF | 50,000 hours demonstrated |
|---|---|
| Mounting Options | 75 mm VESA mount Capped through-mount holes |
| Sealing | Touchscreen sealed to bezel Touchscreen sealed to LCD |
| Other Features | Security lock receptacle |
