No Break CyberPower, 1500VA, 900W, 10 contactos 3 años de garantía
Número de Parte: CP1500PFCLCD
Precios y disponibilidad sujeta a cambios sin previo aviso
The CyberPower CP1500PFCLCD PFC Series UPS System with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. Its patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
CyberPower’s PFC Series UPS Systems with pure sine wave output solve the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower’s innovative PFC Series is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power.

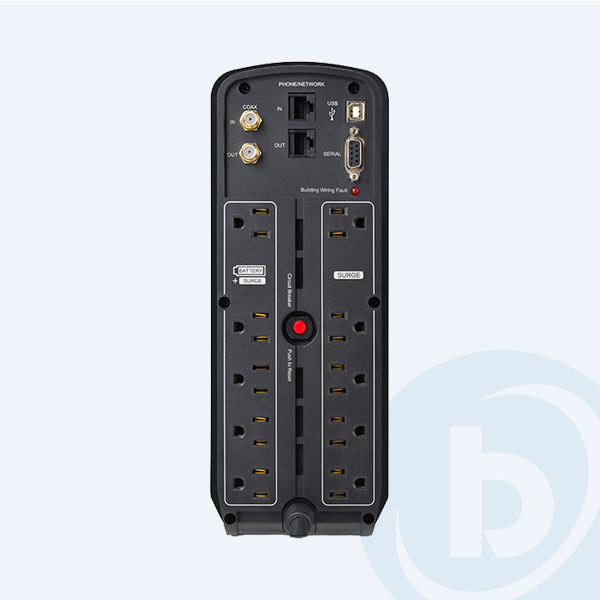

The CP1500PFCLCD unit has a capacity of 1500VA/900Watts, ten (10) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. Two (2) 5Vdc USB 2.0 charging ports for portable devices such as mobile phones, MP3 players, and cameras.
Specifications
| General | |
| UPS Topology | Line-Interactive (AVR) |
| Energy Saving | Yes - GreenPower UPS™ Bypass Technology |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 90Vac - 140Vac |
| Frequency | 57Hz - 63Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right angle, 45 degree offset to the right |
| Cord Length | 5' |
| Output | |
| VA | 1500 |
| Watts | 900 |
| Automatic Voltage Regulation | 88VAC-102VAC |
| On Battery Voltage | 120Vac +/- 5% |
| On Battery Frequency | 60Hz +/- 1% |
| On Battery Waveform | Sine Wave |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Outlets - Total | 10 |
| Outlets - Battery & Surge Protected | 5 |
| Outlets - Surge-Only Protected | 5 |
| USB Charge Port | Yes - Two (2) USB 5V/1A charging ports |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 2 |
| Battery Type | Sealed lead acid |
| Battery Size | 12V/8.5AH |
| User Replaceable | Yes |
| Hot Swappable | No |
| Typical Recharge Time | 8 Hours |
| Replacement Battery | BB Battery - HR1234W |
| Battery Quantity | 2 |
| Surge Protection and Filtering | |
| Surge Suppression | 1,030 Joules |
| Phone / Ethernet RJ11 / RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Diagnostic Display | Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Management Cable | USB Cable |
| LED Indicators | Power on, wiring fault |
| Audible Alarms | On battery, low battery, overload, fault |
| Software | PowerPanel® Personal Edition |
| Emergency Power Off (EPO) Port | No |
| Physical | |
| Form Factor | Tower |
| Dimensions (WxHxD) | 3.9" x 10.4" x 14.2" |
| Weight (lbs) | 24.7 |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Operating Humidity | 0% - 90% non-condensing |
| Certifications | |
| Certifications | UL1778, cUL 107.3, FCC DOC Class B |
| ROHS | ROHS Compliant |
