Proyector Portátil Panasonic, 4000 Lúmenes, HDMI/D-sub 3 años de garantía
Número de Parte: PT-VX42ZU
15,482
IVA incluido en el precio del producto
Tiempo de entrega: de 1 a 5 días hábiles
Precios y disponibilidad sujeta a cambios sin previo aviso
Precios y disponibilidad sujeta a cambios sin previo aviso
| Model | PT-VX42ZU | ||
|---|---|---|---|
| Power supply | |||
| Power consumption | 100-120 V AC: 300 W, 220-240 V AC: 280 W (0.4 W when STANDBY MODE set to ECO,*1 1.3 W when STANDBY MODE set to Network, 9 W when STANDBY MODE set to Normal.) | ||
| LCD panel | Panel size | 16.0 mm (0.63 in) (4:3 aspect ratio) | |
| Display method | Transparent LCD panel (x 3, R/G/B) | ||
| Pixels | 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels | ||
| Lens | 1.2x manual zoom (throw ratio: 1.7-2.1:1), manual focus, F 1.60-1.76, f 22.33-26.80 mm | ||
| Lamp | 230 W x 1, lamp replacement cycle (lamp power: Normal/Eco1/Eco2): 4,000 hours/5,000 hours/6,000 hours*2 | ||
| Screen size (diagonal) | 1.02-7.62 m (40-300 in), 4:3 aspect ratio | ||
| Brightness*3 | 4,000 lm (input signals: PC, lamp power: Normal, picture mode: Dynamic) | ||
| Center-to-corner uniformity*3 | 85 % | ||
| Contrast*3 | 4,000:1 (full on/off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On) | ||
| Resolution | 1,024 x 768 pixels*4 | ||
| Scanning frequency | HDMI | fH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower | |
| RGB (analog) | fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.) | ||
| YPBPR (YCBCR) | fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] | ||
| Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] | ||
| Optical axis shift | 9:1 (fixed) | ||
| Keystone correction range | Vertical: ±30° (±20° when using AUTO) (maximum value of XGA input) | ||
| Installation | Ceiling/floor, front/rear | ||

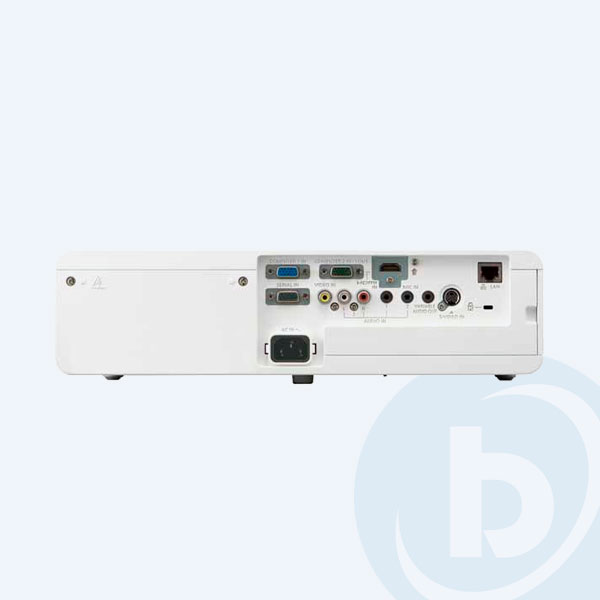

| Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP, Deep Color) 480i*5, 480p, 576i*5, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),*6 audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) | |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | ||
| COMPUTER 2 IN / MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) | ||
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | ||
| S-VIDEO IN | Mini DIN 4-pin x 1 (S-VIDEO) | ||
| AUDIO 1 IN | M3 x 1 (L-R x 1) | ||
| AUDIO 2 IN (MIC IN) | M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) | ||
| AUDIO 3 IN | Pin jack x 2 (L, R x 1) | ||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||
| LAN | RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™) | ||
| USB A | - | ||
| USB B | - | ||
| Built-in speaker | 4.0 cm (1-9/16 in) round shape x 1, output power: 10.0 W (monaural) | ||
| Noise level*3 | 35 dB (lamp power: Normal), 29 dB (lamp power: Eco1, Eco2) | ||
| Cabinet materials | Molded plastic | ||
| Dimensions (W x H x D) | 352 x 98.0*7 x 255*8 mm (13-27/32 x 3-27/32*7 x 10-1/32*8 in) | ||
| Weight*9 | |||
