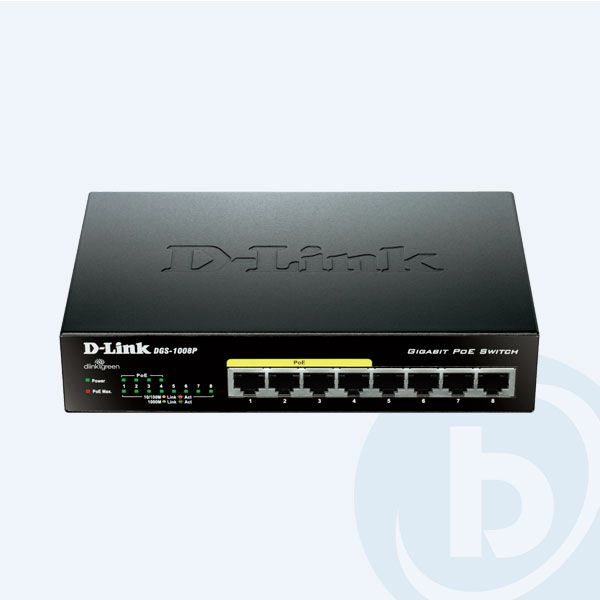

Switch D-Link, 8 Puertos Gigabit, 4 puertos PoE 1 año de garantía

Description

The DGS-1008P PoE Gigabit Desktop switch provides a cost-effective way for SOHO and SMB to benefit from the Power over Ethernet (PoE) technology by allowing users to power up devices such as wireless Access Points, network cameras or IP phones directly from the network cables. The DGS-1008P is equipped with Gigabit ports for faster speeds, and integrates D-Link’s Green Ethernet technology to save power when the switch is not in use. Its fanless design makes it completely silent so it is ideal for offices, libraries or meeting rooms.

Plug and Play PoE (Power over Ethernet)

The first four ports of the DGS-1008P support the IEEE 802.3af PoE standard. Each of these four ports can supply up to 15.4 Watts, making it a very convenient solution for applications that are far away from power outlets, or when it is necessary to minimise the clutter of extra power supplies. The switch will automatically detect the power that a connected PoE device requires so no configuration is needed. A failsafe mechanism will cut off the power in case of an unexpected PoE overload, protecting both the switch and the connected device.

Cable diagnostics function

Every time the DGS-1008P is powered up, it runs a micro diagnostics routine to check the integrity of the connected Ethernet cables. If a failure is detected, the switch will flag it by means of its front panel LEDs, making it easy for the user to troubleshoot wiring problems.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DGS-1008P is able to classify network traffic by assessing the existing 802.1p and DSCP fields in the Ethernet frames and IP packets respectively, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DGS-1008P is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the Green Ethernet technology, which can save a substantial amount of energy by detecting the connected cable lengths, adjusting the power accordingly; and the port status, putting them in lo -power, stand-by mode when no network traffic is detected. Thanks to these power reductions, we have been able to remove the fans in the DGS-1008P’s design, making it completely silent and dramatically increasing its lifespan.



Especificaciones

Switching Capacity

• 16 Gbps

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay Auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS

POE Features

• Supports IEEE 802.3af
• Supplies power to PD: up to 15.4 Watts
• Total PoE budget: 52 Watts
• PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts

Data Transfer Rates

• Ethernet
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
• Gigabit Ethernet
  • 2000 Mbps (full duplex)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Network Cables

• 10BASE-T:
  • UTP CAT 3/4/5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

Led Indicators

• Per port: Link/Activity/Speed/PoE Status
• Per device: Power/PoE Max

Transmission Method

• Store-and-forward

MAC Address Table

• 4K Entries per device

MAC Address Learning

• Automatic update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 192 KBytes per device

Power Consumption

• Power On (Standby):
  • DC input: 0.48 Watts
  • AC input: 2.1 Watts
• Maximum (PoE Off)
  • DC input: 4.48 Watts
  • AC input: 6.2 Watts
• Maximum (PoE On)
  • DC input: 57.83 Watts
  • AC input: 63.2 Watts

Power Adapter

• AC input: 100 to 240 VAC, 50/60 Hz
• DC output: DC 48 V/1.25 A (60 Watts)

Operating Temperature

• Device:
  • 0 to 50 °C (32 to 122 °F)
• External Power Adapter:
  • 0 to 40 °C (32 to 104 °F)

Storage Temperature

• 40 to 70 °C (104 to 158 °F)

Operating Humidity

• 0% to 95% RH non-condensing

Storage Humidity

• 0% to 95% RH non-condensing

Device Dimensions

• 7.5 x 4.7 x 1.5 inches (190 x120 x 38 mm)

Certifications

• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• LVD
