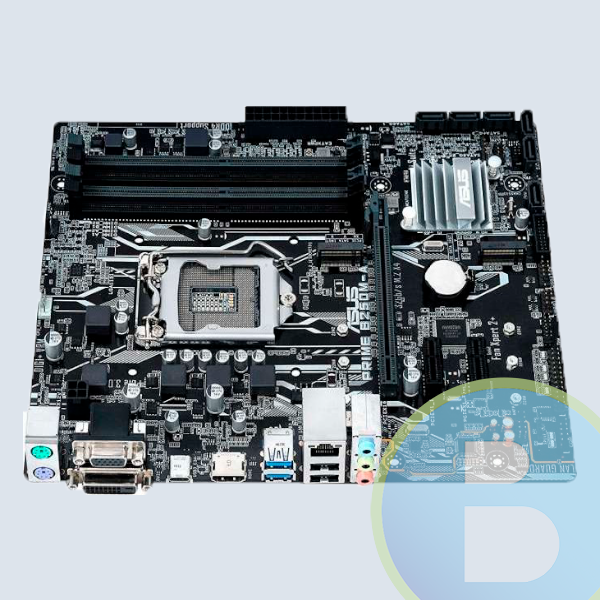

Tarjeta Madre ASUS B250M-A, 4XDDR4, DVI, HDMI, 3XPCI 3.0, S-1151 1 año de garantía
Número de Parte: PRIME B250M-A
1,494
IVA incluido en el precio del producto
Tiempo de entrega: de 1 a 5 días hábiles
Precios y disponibilidad sujeta a cambios sin previo aviso
Precios y disponibilidad sujeta a cambios sin previo aviso
Ficha Técnica:
- CPU
- Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
- * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
- * Refer to www.asus.com for CPU support list
- Chipset
- Intel® B250
- Memoria
- 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *1
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- * The maximum memory frequency supported varies by processor.
- * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
- ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
- Gráfica
- Integrated Graphics Processor- Intel® HD Graphics support
- Multi-VGA output support : HDMI/DVI-D/RGB ports
- - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / x @ Hz
- - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Maximum shared memory of 1024 MB
- Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
- Supports up to 3 displays simultaneously
- Soporte Multi-GPU
- Supports AMD Quad-GPU CrossFireX™ Technology
- Puertos de Expansión
- 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- 2 x PCIe 3.0/2.0 x1
- Almacenamiento
- Intel® B250 Chipset :
- 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*
- 6 x SATA 6Gb/s port(s), gray
- LAN
- Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
- Realtek® ALC887 8-Channel High Definition Audio CODEC
- - Supports : Jack-detection, Front Panel Jack-retasking
- Audio Feature :
- - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Puertos USB
- Intel® B250 Chipset :
- 6 x USB 2.0 port(s) (2 at back panel, black, Type-A, 4 at mid-board)
- Intel® B250 Chipset :
- 4 x USB 3.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
- Intel® B250 Chipset :
- 1 x USB 5Gb/s port(s) port(s) (1 at back panel, black, Type-C, Reversible, Support 3A power output)
- Capacidades Especiales
- ASUS 5X Protection III :
- - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- - ASUS Overvoltage Protection: World-class circuit-protecting power design
- - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- - ASUS DIGI+ VRM: Phase digital power design
- ASUS EPU :
- - EPU
- ASUS Exclusive Features :
- - AI Suite 3
- - Ai Charger
- ASUS Quiet Thermal Solution :
- - Stylish Fanless Design Heat-sink solution & MOS Heatsink
- - ASUS Fan Xpert 2+
- ASUS EZ DIY :
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- - Push Notice
- ASUS Q-Design :
- - ASUS Q-Slot
- - ASUS Q-DIMM
- Gaming Aesthetics :
- - 3D printing friendly
- Media Streamer
- Sistema Operativo Soportado
- Windows® 10 , 64bit
- Windows® 8.1 , 64bit
- Windows® 7 , 32bit/64bit *
- Puertos posteriores I/O
- 1 x PS/2 mouse (green)
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
- 2 x USB 3.0 (blue) Type-A
- 2 x USB 2.0
- 3 x Audio jack(s)
- Internal I/O
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
- 0 x TPM connector(s)
- 1 x LPT header
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (2 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Internal speaker connector(s)
- 1 x System panel(s)
- 1 x Chassis Intrusion connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x Chassis intrusion header
- Accesorios
- User's manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- Form Factor
- Micro ATX Form Factor
- 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
- Nota
- 1* When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
- 2* M.2_2 supports Intel® IRST Technology and Intel® Optane memory***
- 3* These functions will work depending on the CPU installed.
- 4* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
- 5* Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
