Tarjeta Madre ECS, DRR3 1066/1600MHz, LGA1155, Audio/Video/Red 1 año de garantía
Número de Parte: H61H2-MV (V1.0)
853
IVA incluido en el precio del producto
Tiempo de entrega: de 1 a 5 días hábiles
Precios y disponibilidad sujeta a cambios sin previo aviso
Precios y disponibilidad sujeta a cambios sin previo aviso
- Up to 95W Thermal Design Power support
- Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
- ECS MIB III - A friendly interface for overclocking
- Microsoft Windows 8 Certified
- Intel® 22nm Multi-Core CPU support
- ECS Intelligent EZ Utility : eBLU, eDLU, eSF
- Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
| CPU | º Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket º DMI 5.0GT/s º TDP: 95W º VRD 12.0 º Solid Capacitor for CPU side |
| CHIPSET | º Intel® H61 Express Chipset |
| GRAPHICS | º Support Intel® HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU) º Supports DirectX® 11 º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| MEMORY | º Dual-channel DDR3 Memory architecture º Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket º Support up to 16 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation º * Intel® Ivy Bridge CPU required |
| EXPANSION SLOT | º 1 X PCI Express X16 Gen 3.0 slot(s) º 1 X PCI Express X 1 Gen 2.0slot(s) |
| Storage | º Support by H61 Express Chipset • 4 X Serial ATAII 3Gb/s |
| Audio | º Realtek ALC662 ‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2 |
| LAN | º Realtek 8111E Gigabit Fast Ethernet Controller º (8105E 10/100Mbps Fast Ethernet Controller optional) º Wake-On-LAN |
| USB | º Support by H61 Express Chipset • 8 X USB2.0 port(s) Up to 2.5Gb/s |

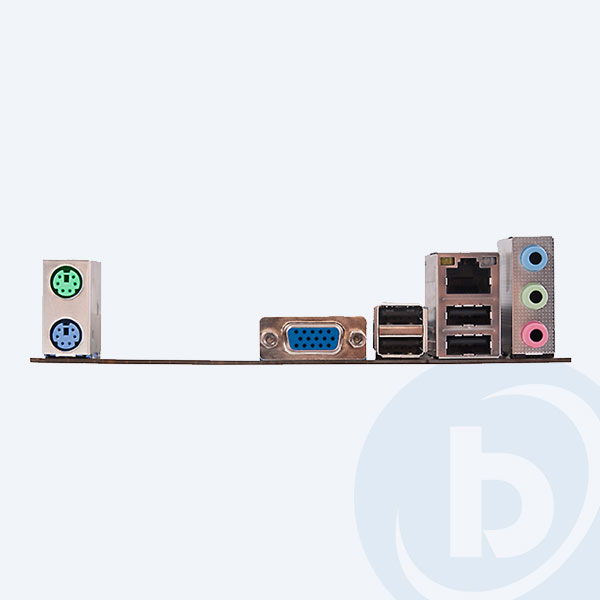

| REAR PANEL I/O | º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) (optional) º 1 X DVI-I port(s) (optional) º 1 X D-Sub (VGA) port(s) º 4 X USB2.0 port(s) |
| CONNECTORS & HEADERS | º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X Front panel audio header º 1 X Speaker header º 2 X USB 2.0 header • Support additional 4 USB ports º 4 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X ME_UNLOCK header |
| SYSTEM BIOS | º AMI BIOS with 32 MB SPI Flash ROM º Supports M.I.B III Utility º ACPI & DMI º F7 hot key for boot up devices option º Over-Clocking º Dual Display º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey º CPU FSB adjustment(increase of 1MHz) |
| FORM FACTOR | º mATX Form Factor º 195 mm(W) X 170mm(H) |
| OS Support | º Windows XP 32-bit º Windows XP 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit |
| Certifications | º CE/FCC Certification º ErP/EuP Certification º WHCK Certification |
| Bundled Software | º ECS Intelligent EZ Utility : eBLU, eDLU, eSF º Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version |
Precios y disponibilidad sujetos a cambio sin previo aviso. Las imágenes pueden no corresponder al producto y sólo se muestran con fines ilustrativos. Para envíos gratis, aplican restricciones.
