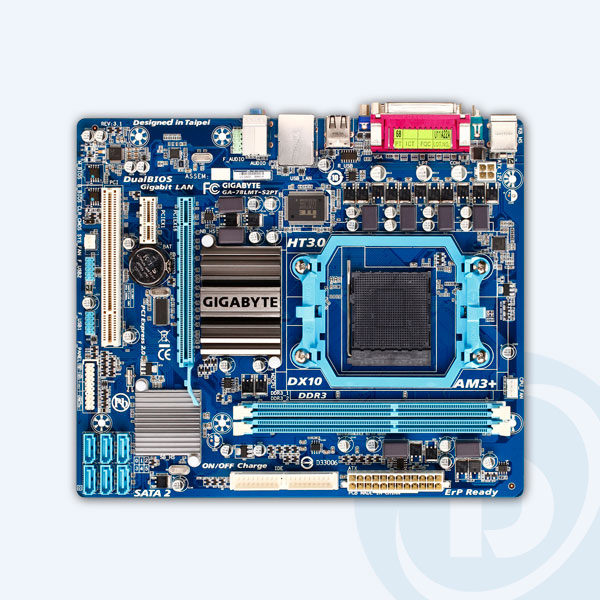

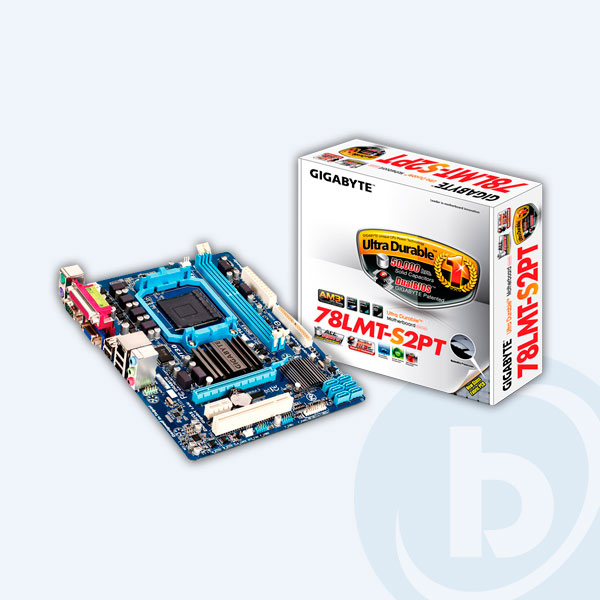

Tarjeta Madre GIGABYTE GA-78LMT-S2PT, 2XDDR3, 1 x PCI Express x16 slot 1 año de garantía

Procesador

AM3+ Socket:

1. Support for AMD AM3+ processor
2. Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor

Bus Hyper Transport

1. HyperTransport™ 3.0
2. Support up to 5200MT/s

Chipset

1. North Bridge: AMD 760G
2. South Bridge: AMD SB710

Memoria

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support DDR3 for 1333+/1066/800 MHz memory modules

Gráficos Integrados

North Bridge:

1. 1 x D-Sub port

Audio

1. Realtek HD codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note 2)

LAN

1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Puertos de Expansión

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
3. 1 x PCI slot

Interfaz de Almacenamiento

South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID 10, and JBOD

USB

South Bridge:

1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos de E/S

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x IDE connector
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 2 x USB 2.0/1.1 headers
10. 1 x Clear CMOS jumper

Conectores del Panel Trasero

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x serial port
4. 1 x parallel port
5. 1 x D-Sub port
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)

Controlador de E/S

1. ITE IT8720 chip

Monitorización H/W

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control (Note 3)

BIOS

1. 2 x 16 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Características Únicas

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 4)
8. Support for Smart Recovery
9. Support for Auto Green
10. Support for On/Off Charge
11. Support for Cloud OC
12. Support 3TB+ Unlock
13. Support for Q-Share

Software Incluido

1. Norton Internet Security (OEM version)

Sistema Operativo

1. Support for Microsoft Windows 7/ Vista/ XP

Diseño

1. Micro ATX Form Factor; 24.4cm x 20.6cm
