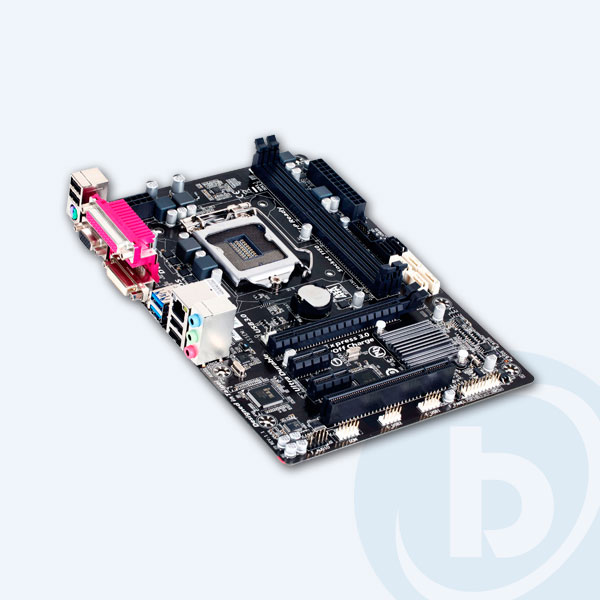

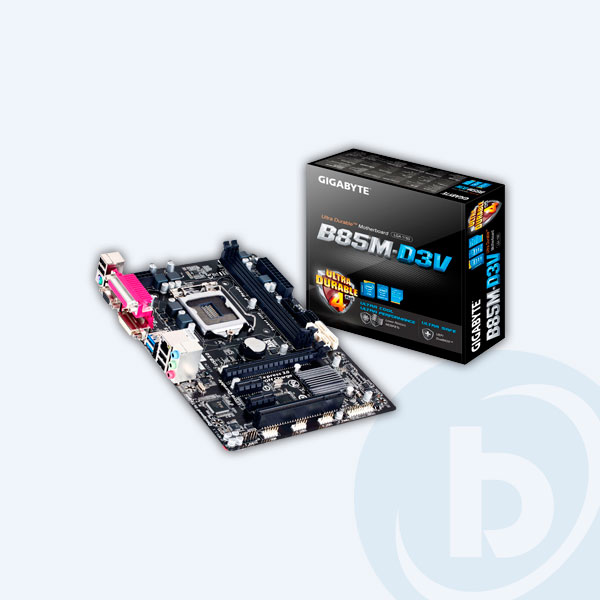

Tarjeta Madre GIGABYTE GA-B85M-D3V, 2XDDR3, 1 x PCI Express x16 slot 1 año de garantía

Procesador

1. Support for Intel ^® Core™ i7 processors/Intel ^® Core™ i5 processors/Intel ^® Core™ i3 processors/Intel ^® Pentium ^® processors/Intel ^® Celeron ^® processors in the LGA1150 package
2. L3 cache varies with CPU

Chipset

1. Intel ^® B85 Express Chipset

Memoria

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrado

Integrated Graphics Processor - Intel ^® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
   * The DVI-D port does not support D-Sub connection by adapter.
3. Maximum shared memory of 1 GB

Audio

1. Realtek ^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1. Realtek ^® GbE LAN chip (10/100/1000 Mbit)

Puertos de Expansión

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
3. 1 x PCI slot

Interfaz de Almacenamiento

Chipset:

1. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
2. 2 x SATA 3Gb/s connectors (SATA2 4/5)

USB

Chipset:

1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos de E/S

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x serial port header
12. 1 x Clear CMOS jumper

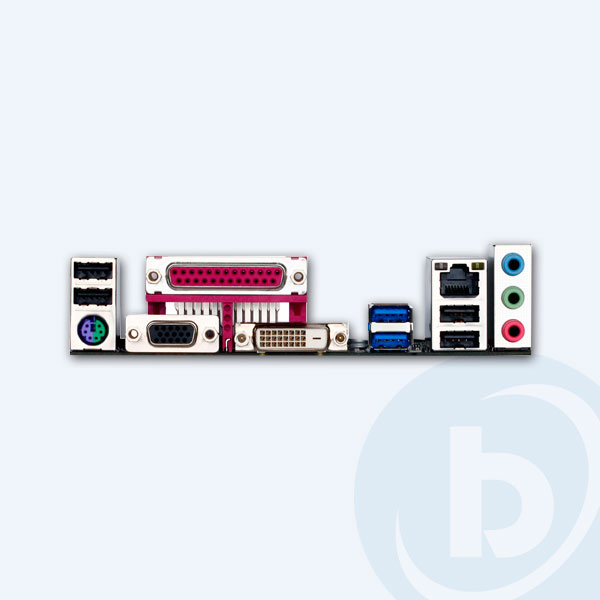

Conectores del Panel Trasero

1. 1 x PS/2 keyboard/mouse port
2. 1 x parallel port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 2 x USB 3.0/2.0 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)

Controlador de E/S

1. iTE ^® I/O Controller Chip

Monitorización H/W

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   USB Blocker
   Smart TimeLock
   Smart Recovery 2
4. Support for ON/OFF Charge

Software Incluido

1. Norton Internet Security (OEM version)
2. Intel ^® Rapid Start Technology
3. Intel ^® Smart Connect Technology
4. Intel ^® Small Business Advantage

Sistema Operativo

1. Support for Windows 10/8.1/8/7

Diseño

1. Micro ATX Form Factor; 24.4cm x 17.4cm
